Coils and Counter-flow: 5 Common Questions

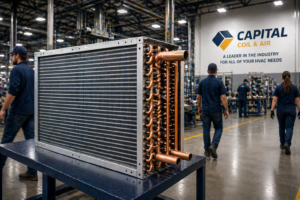

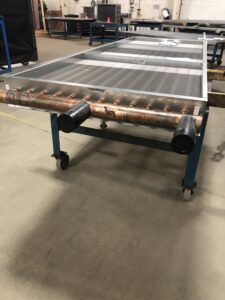

The first thing to remember about coils and counter-flow is that chilled water coils are always built to be piped in counter-flow. This means that the air flows in the opposite direction as the water. For example, with counter-flow, the air flows through rows 1-8, while the water runs through rows 8-1. Water always travels through the coil in the opposite direction of the air; hence the term “counter-flow.” Direct Expansion Coils (Evaporator Coils) are also piped in the same manner.
Guidelines For Air Velocities

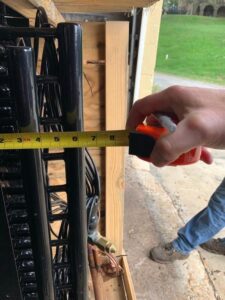

Step # 1 in determining the size and performance of a coil is dependent upon understanding face velocities of air across the coil. Whether you use CCA’s coil selection program to help size the coil, or you are replacing an existing coil; the height, length and resulting velocity determine everything.
Why Is Fin Design On HVAC Replacement Coils Important?
What is the point of understanding the importance of fins in HVAC replacement coils? While coils can be built with flat fins for various reasons, the vast majority of coils are built with enhanced fins. Enhanced fins help to ensure that the airflow is not running straight through the coil.
Tips on Hand Designation & “Counter-flow”
Are your water coils right hand vs. left hand? Is it looking into the face of the coil or with the air hitting you in the back of the head? What exactly is counter-flow and why is it important? Are you completely confused by why right hand vs. left hand even exists?
